Integration Kit: upgrade your existing equipment to composite AM production

Reach the hardware that will empower your designs

Integration Kit

Discover our hardware

Already equipped with a robotic platform?

Upgrade your existing robotic system to composite additive manufacturing.

The Integration Kit transforms installed robotic systems into high-throughput thermoset composite manufacturing platforms. With the S18 SFM integration kit, it enables the deposition of short fiber-reinforced thermoset composites, supporting rapid production of high-strength, heat-resistant functional components.

The result is access to advanced composite AM capabilities without full equipment replacement, maximizing the value of your existing robotic asset.

Expanding manufacturing possibilities

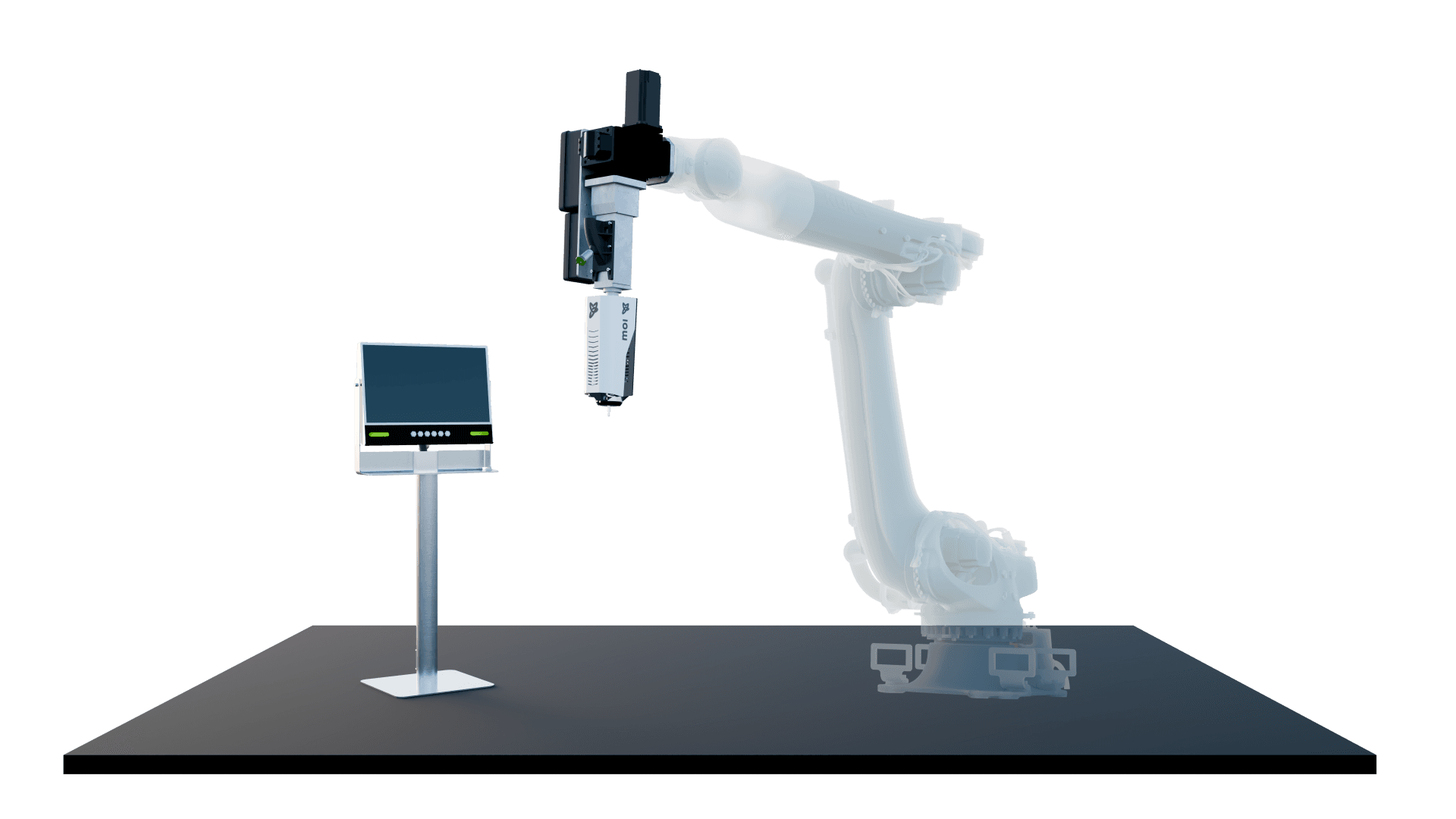

SFM Integration kit with S18 toolhead

Toolhead

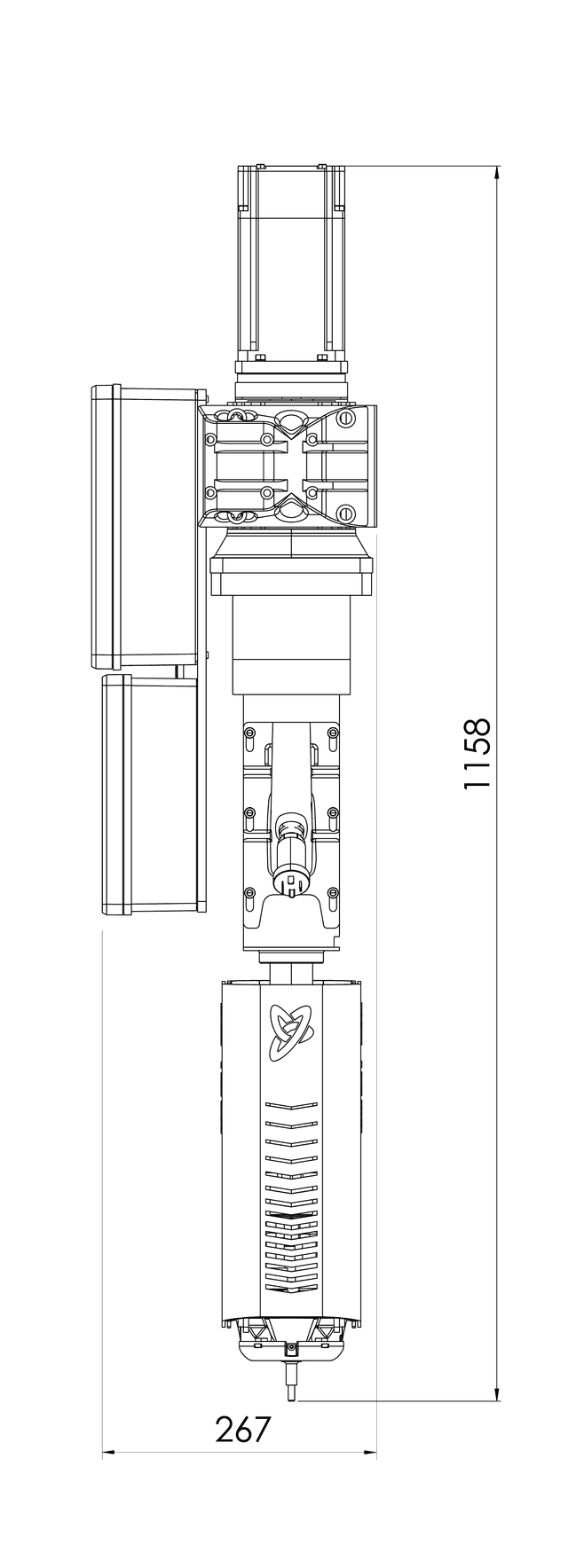

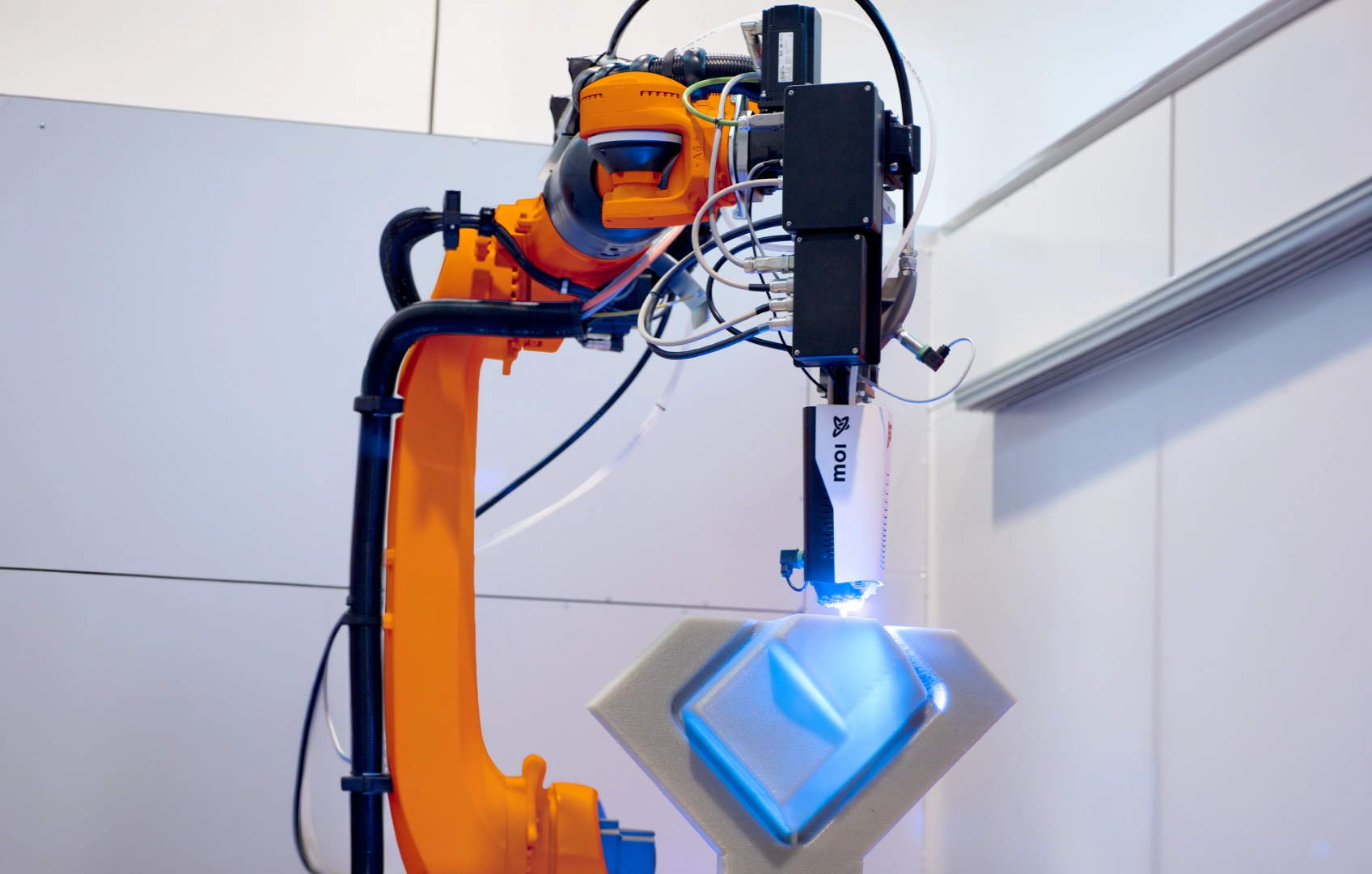

S18 SFM® deposition unit seamlessly integrated into the HFP control system, enabling high-speed thermoset composite printing with in-situ UV curing.

Premium automation

Dedicated IPC for process control running Strato Machine, our proprietary machine-side software managing printing operations and system utilities within a dedicated automation cabinet.

Easy integration

Delivered with automation cabinet, 27" touchscreen control station, and all required auxiliaries for straightforward integration and rapid deployment.

Specifications

S18

Technical features

Material throughputup to 12 kg/h
Deposition speedup to 400 mm/s
Printable bead widthfrom 3 to 12 mm
UV curing sources180 W optical
Printing tilt angleup to 48°

Contact us

for more informations.

Our AM ecosystem

Explore our fully integrated SFM® hardware, material and software

Let's get into it.

Discover how our AM platform performs on your specific challenge

Chevron ForwardContact us
